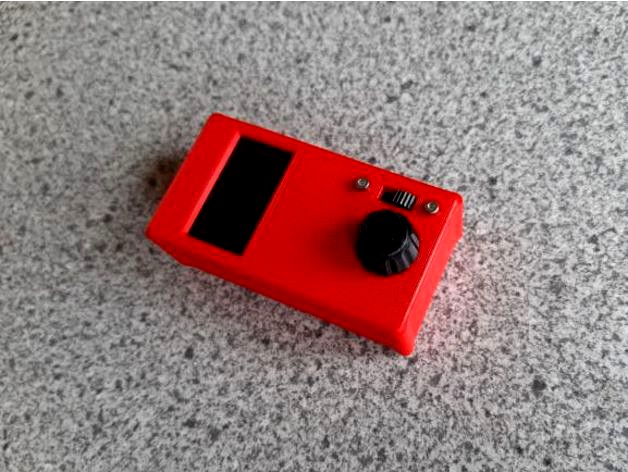

Project case for oled display and Arduino Nano with 9V battery by olkal
by Thingiverse
Last crawled date: 4 years, 11 months ago
Project case for battery powered Arduino projects.
It can hold the following components:
Arduino Nano
Oled display 1.3 inch
Rotary encoder (15mm or 20mm hight)
On/off slide switch
9V battery
Also needed:
4 pcs selftapping 2mmx8 screws for bottom lid
2 pcs M2x6 screws for on/off slide switch
The design is compact and to fit all modules (Arduino Nano, oled etc) must be without header pins.
There is also a version for the smaller 0.96 inch oled display included.
STEP file is included, if you want to remix.
