Programming Clip by DragonNZ
by Thingiverse
Last crawled date: 4 years, 7 months ago

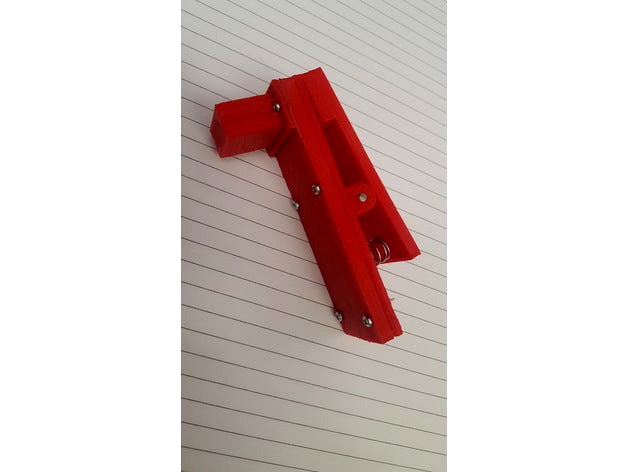

Programming Clip that I made for a PCB that I made. This one is for a PSoC programming adapter, but I am sure it could be used for many types.
The clip encloses a length of vero board, at one end are some spring contacts and at the other end a connector for the PSoC programmer.
It is held together with 2mm nuts and bolts. The spring a century spring corp spring from a local hardware store, part number C-566 (3/8 x 3/4 x 0.032)
I have included the Cubify Invent files in case somebody wants to modify the design to suit their purposes.
The vero board is 5 holes wide (15.8mm) x 32 holes long (83mm)
The spring contacts I have used are RS Pro, Part # 261-5187 from RS Electronics and use the matching pin receptacle part# 261-5250 from RS Electronics.
The clip encloses a length of vero board, at one end are some spring contacts and at the other end a connector for the PSoC programmer.
It is held together with 2mm nuts and bolts. The spring a century spring corp spring from a local hardware store, part number C-566 (3/8 x 3/4 x 0.032)
I have included the Cubify Invent files in case somebody wants to modify the design to suit their purposes.
The vero board is 5 holes wide (15.8mm) x 32 holes long (83mm)
The spring contacts I have used are RS Pro, Part # 261-5187 from RS Electronics and use the matching pin receptacle part# 261-5250 from RS Electronics.
