Printrbot Simple Metal - Horizontal Spool Holder and Filament Guide by kmccon
by Thingiverse
Last crawled date: 4 years, 7 months ago

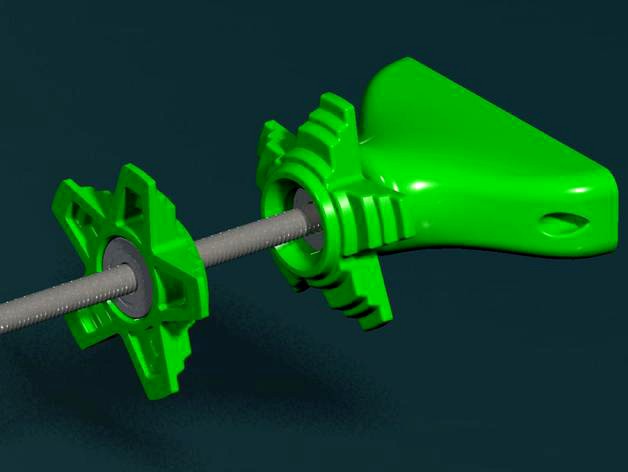

Horizontal Spool Holder and Filament Guide for a Printrbot Simple Metal with the optional handle.
Stepped cones were designed to fit most common plastic spools and use 608ZZ bearings which have a slight press fit.
The bracket uses a 5/16 x 5" carriage bolt and nut. I use a 5/16 wing nut or knob to hold the spool in place. If you use a knob, make sure it doesn't bind against the bearing. This assembly screws to the Printrbot handle with M3 bolts.
Stepped cones were designed to fit most common plastic spools and use 608ZZ bearings which have a slight press fit.
The bracket uses a 5/16 x 5" carriage bolt and nut. I use a 5/16 wing nut or knob to hold the spool in place. If you use a knob, make sure it doesn't bind against the bearing. This assembly screws to the Printrbot handle with M3 bolts.
