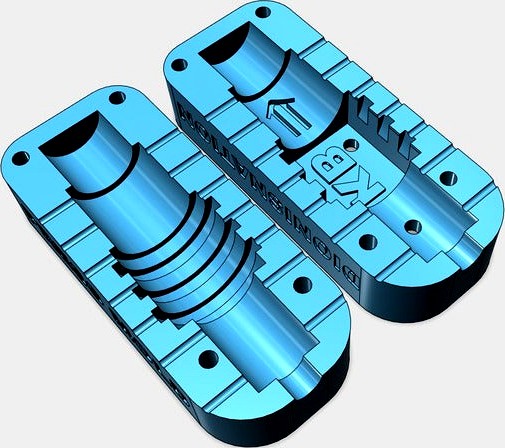

Press mold for ps\2 plug connectors by Dionisnation
by Thingiverse
Last crawled date: 5 years ago
This molds for molding ps\2 plug connetors.
I'm use hot glue with hot glue pistols for made this connectror. And i have best quality with layer thickness - 0,1 mm nozzle diameter - 0.5 mm
Maybe if u use 0.05 mm layer thickness u have better quality
Before pouring hot glue lubricate the form of motor oil or Vaseline. After pouring wait 30 min and open the form/
How to use these forms:
1 - First of all - print out, the thickness of the layer should be from 0.05 mm to 0.1 mm, the nozzle with a diameter of 0.5-0.4 mm (well, or a cnc drill with a metal cut)
2 - Solder the connector with wires according to the power scheme of your gadget
3 - Lubricate the mold with petroleum jelly or clean engine oil
4 - Insert the soldered connector into one part of the mold, cover the second
5 - Drag the rubber band for banknotes or tie it with thread so that it does not open
6 - Preheat the glue gun
7 - Using a gun to extrude the hot glue into the molds
8 - Allow to cool for 20-30 minutes
9 - Disassemble the form and remove the connector, wipe off Vaseline or oil with dishwashing detergent
10 - use
Fill can even a liquid rubber with a hardener.
Subscribe Me if U like my things )
If you want to support me: The best way to say "thank you" is to send a dollar (or more) Alas, I can't accept Paypal, but I can give you the number of the card (reality of life in Ukraine)
