Polaris RZR roll cage clamp by rsh1981
by Thingiverse
Last crawled date: 4 years, 4 months ago

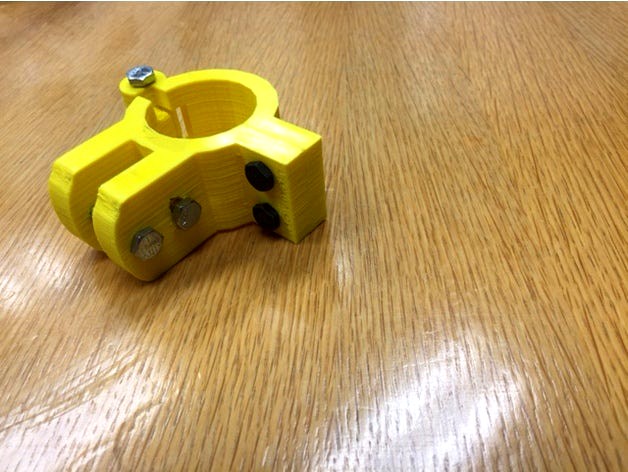

This a Clamp that I use to mount accessories to my RZR 900 roll Cage.
Clamp D has a recess in the back of the accessory mount to make it easier to swivel
You can build your own insert for the clamp to fit your specific needs or let me know and I will make the ones I have available.
The last 3 stl files are other variations of the same clamp with a different mounting configurations.
I usually chase the hinge holes with a 1/4" drill bit to clean up the holes
Carefully cut through the hinge joint with a razor to free them up.
Hardware:
2- 1/4" x 1" bolts
1- 1/4" x 1 3/4" bolt
2- 1/4" x 2" bolts
2- 1/4" flat washers
3- 1/4" nuts
2- 1/4" locking nuts
Either course or fine thread bolt are ok
