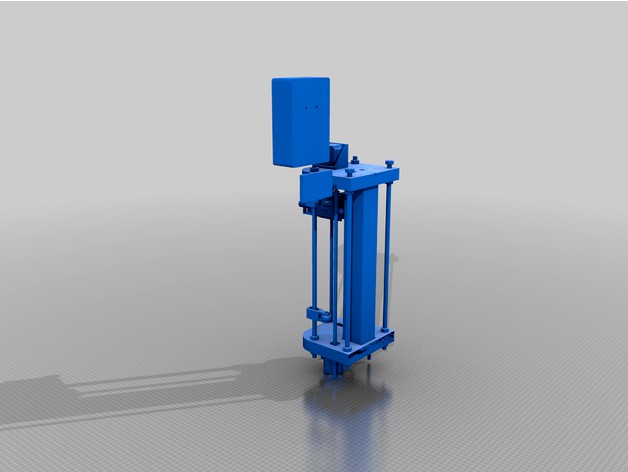

Plotter GRBL GCODE A3 by Samwbarber

Last crawled date: 4 years, 5 months ago

A3 plotter made using uses GRBL with an Arduino to control it.
Non 3d printed parts;
-Nema 17 stepper X2
-Servo sg90
-M10 threaded rod + nuts and washers
-glue lined heat shrink 9mm/10mm (to make rollers grip)
-Linear rails 8mm
-LM8UU bearing X2
-Power supply
-Arduino + CNC shield
-Aviation connectors
-50mm steel U channel
