Plant Saucer with Raised Drainage Ridges by GMoi
by Thingiverse
Last crawled date: 4 years, 4 months ago

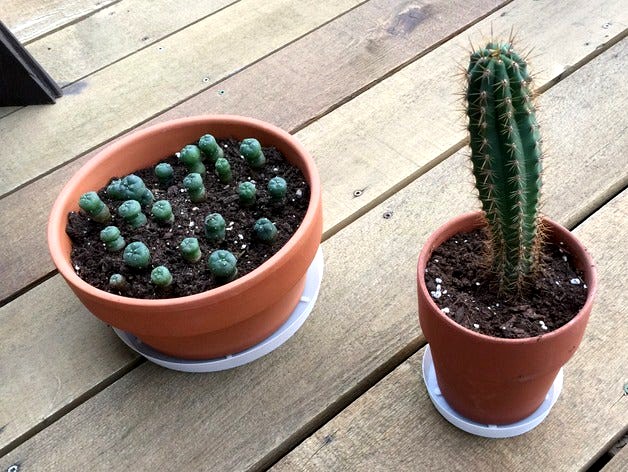

This Saucer is designed to print quickly with minimal filament. There are two files that can be scaled up or down to make the size you need.
Smaller Size:
The inside diameter of the bottom is 70mm, wall thickness 0.5mm, wall height 14mm, ridges 1.5mm high. The angle of the wall is 100 deg from the bottom.
Larger Size:
The inside diameter of the bottom is 180mm, wall thickness 0.5mm, wall height 20mm, ridges 2.5mm high. The angle of the wall is 105 deg from the bottom.
There should be some extra room around the pot for water to pool. X and Y can be scaled differently to better fit odd shaped pots as seen in the second photo.
