Pi Header Pin Mount for Aokin Raspberry Pi Camera Module by steveplusplus
by Thingiverse
Last crawled date: 4 years, 11 months ago

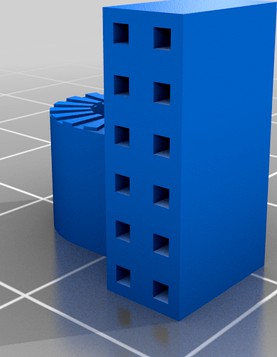

This is a simple mount for the Aokin Raspberry Pi Camera Module 5MP 1080p OV5647. The camera module is 25mm x 25mm x 1mm and has the ribbon coming out of the bottom. The mount slides onto the standard Raspberry Pi .1in pitch 40pin header.
I use a 5x5xM3 threaded thermal inserts with an OD of 5.4mm and an M3 bolt to join the two parts, which might be a little fancy for some people.
I've included the raw Fusion 360 files in case you want to adjust the model yourself!
I use a 5x5xM3 threaded thermal inserts with an OD of 5.4mm and an M3 bolt to join the two parts, which might be a little fancy for some people.
I've included the raw Fusion 360 files in case you want to adjust the model yourself!
