PI CUBE ( octoprint) by madjack911
by Thingiverse
Last crawled date: 4 years, 4 months ago

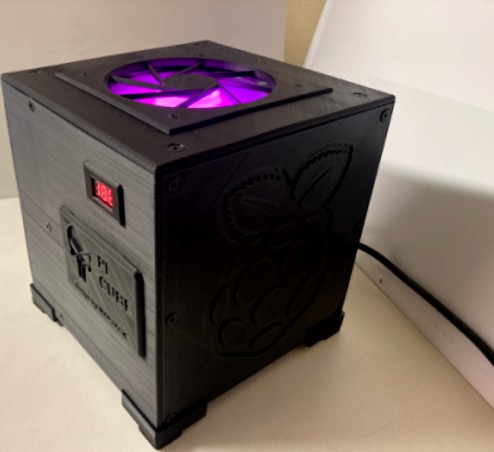

PICUBE for octopi
pi cube pour octoprint
pilotage de l imprimante (alimentation)
pilotage eclairage led
detecteur de filament
regulation temperature pi4 et alim
support hdmi pour picam
raspberry sur hdd m2
detecteur filament
gpio 24 et ground
detecteur filament 2 fils
pugin Octoprint-Filament-Reloaded-master
install relais
sudo apt-get update
sudo apt-get upgrade
sudo apt-get install git-core
git clone https://github.com/wiringpi/wiringpi
cd wiringpi
./build
2 - Maintenant il va falloir éditer un fichier :
sudo nano /etc/rc.local
avant la ligne exit 0, tapez ceci :
/usr/local/bin/gpio write 0 0
/usr/local/bin/gpio mode 0 out
/usr/local/bin/gpio write 2 0
/usr/local/bin/gpio mode 2 out
dans system commande editor
led on
gpio write 0 0
led off
gpio write 0 1
imprimante on
gpio write 2 0
imprimante off
gpio write 2 1
ESP8266
fichier rainbow arduino
régulation température
module afficheur dessoudé de la carte et placé sur le coté du cube
alimentation 5v 4A(pi4 /régulation temp/ventilateur 40mm/esp8826/LED ARGB ventilo 120mm
alimentation 12v 15a led externe
vis tête fraisée m3 et m4
PICUBE for octopi
printer control (power supply)
led lighting control
filament detector
temperature regulation pi4 and power supply
hdmi support for picam
raspberry on hdd m2
filament detector
gpio 24 and ground
2-wire filament detector
pugin Octoprint-Filament-Reloaded-master
install relay
sudo apt-get update
sudo apt-get upgrade
sudo apt-get install git-core
git clone https://github.com/wiringpi/wiringpi
cd wiringpi
./build
2 - Now you will have to edit a file:
sudo nano /etc/rc.local
before the exit 0 line, type this:
/ usr / local / bin / gpio write 0 0
/ usr / local / bin / gpio mode 0 out
/ usr / local / bin / gpio write 2 0
/ usr / local / bin / gpio mode 2 out
in system command editor
led on
gpio write 0 0
led off
gpio write 0 1
printer on
gpio write 2 0
printer off
gpio write 2 1
ESP8266
arduino rainbow file
temperature regulation
display module unsoldered from the board and placed on the side of the cube
power supply 5v 4A (pi4 / temp regulation / fan 40mm / esp8826 / LED ARGB fan 120mm
12v 15a external led power supply
screw m3 and m4
pi cube pour octoprint
pilotage de l imprimante (alimentation)
pilotage eclairage led
detecteur de filament
regulation temperature pi4 et alim
support hdmi pour picam
raspberry sur hdd m2
detecteur filament
gpio 24 et ground
detecteur filament 2 fils
pugin Octoprint-Filament-Reloaded-master
install relais
sudo apt-get update
sudo apt-get upgrade
sudo apt-get install git-core
git clone https://github.com/wiringpi/wiringpi
cd wiringpi
./build
2 - Maintenant il va falloir éditer un fichier :
sudo nano /etc/rc.local
avant la ligne exit 0, tapez ceci :
/usr/local/bin/gpio write 0 0
/usr/local/bin/gpio mode 0 out
/usr/local/bin/gpio write 2 0
/usr/local/bin/gpio mode 2 out
dans system commande editor
led on
gpio write 0 0
led off
gpio write 0 1
imprimante on
gpio write 2 0
imprimante off
gpio write 2 1
ESP8266
fichier rainbow arduino
régulation température
module afficheur dessoudé de la carte et placé sur le coté du cube
alimentation 5v 4A(pi4 /régulation temp/ventilateur 40mm/esp8826/LED ARGB ventilo 120mm
alimentation 12v 15a led externe
vis tête fraisée m3 et m4
PICUBE for octopi
printer control (power supply)
led lighting control
filament detector
temperature regulation pi4 and power supply
hdmi support for picam
raspberry on hdd m2
filament detector
gpio 24 and ground
2-wire filament detector
pugin Octoprint-Filament-Reloaded-master
install relay
sudo apt-get update
sudo apt-get upgrade
sudo apt-get install git-core
git clone https://github.com/wiringpi/wiringpi
cd wiringpi
./build
2 - Now you will have to edit a file:
sudo nano /etc/rc.local
before the exit 0 line, type this:
/ usr / local / bin / gpio write 0 0
/ usr / local / bin / gpio mode 0 out
/ usr / local / bin / gpio write 2 0
/ usr / local / bin / gpio mode 2 out
in system command editor
led on
gpio write 0 0
led off
gpio write 0 1
printer on
gpio write 2 0
printer off
gpio write 2 1
ESP8266
arduino rainbow file
temperature regulation
display module unsoldered from the board and placed on the side of the cube
power supply 5v 4A (pi4 / temp regulation / fan 40mm / esp8826 / LED ARGB fan 120mm
12v 15a external led power supply
screw m3 and m4
