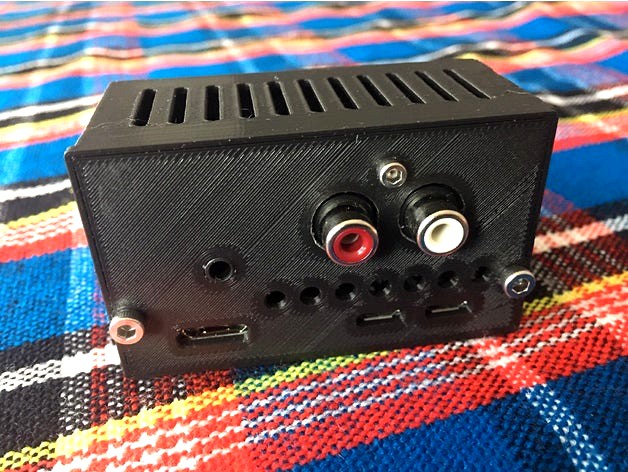

PHAT DAC with RCA
by Thingiverse
Last crawled date: 5 years, 3 months ago
Based on the excellent work of "ywabiko", pHat Dac Enclosure.
Using Raspberry Zero W
802.11 b/g/n wireless LAN
Bluetooth 4.1
Bluetooth Low Energy (BLE)
Pimoroni pHAT DAC witb Dual RCA Jack (https://www.adafruit.com/product/3016)
24-bit audio at 192KHz
Line out stereo jack
pHAT format board
Uses the PCM5102A DAC to work with the Raspberry Pi I2S interface
Building a Bluetooth DAC with Raspberry Pi Zero W visit https://pagefault.blog/
Using Raspberry Zero W
802.11 b/g/n wireless LAN
Bluetooth 4.1
Bluetooth Low Energy (BLE)
Pimoroni pHAT DAC witb Dual RCA Jack (https://www.adafruit.com/product/3016)
24-bit audio at 192KHz
Line out stereo jack
pHAT format board
Uses the PCM5102A DAC to work with the Raspberry Pi I2S interface
Building a Bluetooth DAC with Raspberry Pi Zero W visit https://pagefault.blog/
