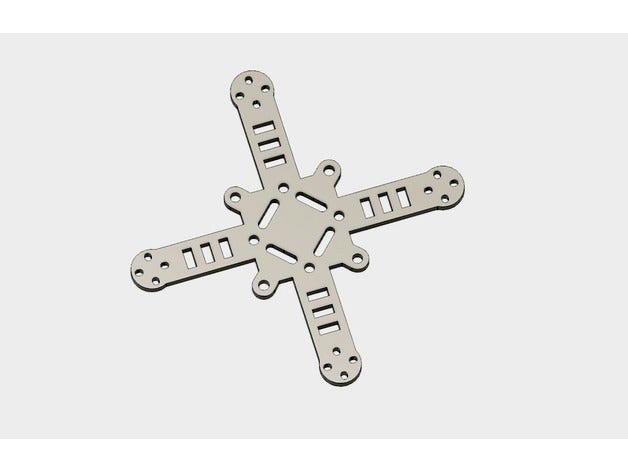

PEX96 - Micro FPV quadcopter brushless 96mm frame - Remixes by P3X
by Thingiverse
Last crawled date: 3 years, 1 month ago
Hello folks
This frame is a remix of my PEX96 frame, it is designed for 20x20mm FC and ESC mount and for 19/2035 propellers. This is a 96mm class frame with holes for 1103/1105 motors (Racerstar BR1103 and DYS BE1104 motors have been tested)
I build this frame around the parts I wanted so I recommend to check my part list:
Piko BLX F3
Cicada 4in1 10A or Multistar 4 in 1 10 A
Eachine VTX03
iPEX to SMA Mushroom Antenna
600TVL 120 Degree Camera
FD800 Tiny Frsky 8CH PPM/SBUS Receiver
DYS BE1104 6500kv Motors
You can use any 19/20 props, but I recommend the Furious FPV 2035-4 Propellers
Lipo Tattu 450mah 75C, Tattu 650mah 75C and cheap Zop Power 500Mah 45C(I switched the plug to XT30)
It should be very durable and lightweight depending on your filament type and quality. I would recomment to use Nylon or Carbon fiber filament.
