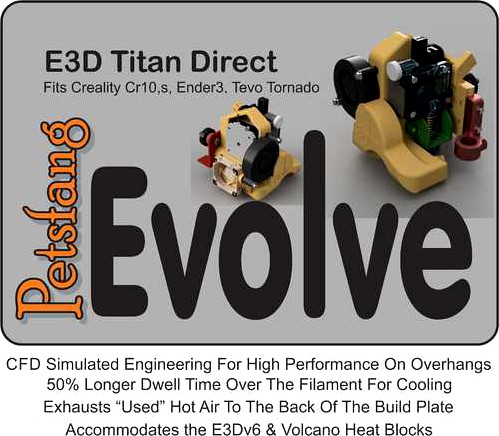

Petsfang Evolve for E3D Titan Direct Extruder
This is an addition to our Evolve Series of cooling solutions. As with all our mods, we engineered this using enhanced CFD simulations and incorporating features that have proven successful from our popular Petsfang v2, Bullseye and Evolve series designs.
View Our "EVOLVE" Playlist Herehttps://www.youtube.com/playlist?list=PLrSJ-TZuC69w3KfMJd7eNluhF5yCLWXl2
Our Evolve plenum based duct profile provides greater coverage of the filament and has a 50% longer dwell time over the filament for cooling, allowing for increased overhang performance at higher extrusion volumes. With the increased velocity we have added segmented outlets extending into the plenum to reduce high pressure areas within the duct outlet giving a more balanced flow across the outlet.
The CFD simulations allowed us to optimize the outlet velocity to keep a greater distance from the nozzle and allowing for a smaller plenum. This still allowed the converging airflow to exit the nozzle area which has proven to be very successful with all the Petsfang Mods, keeping fresh air and lower turbulence on the filament.
