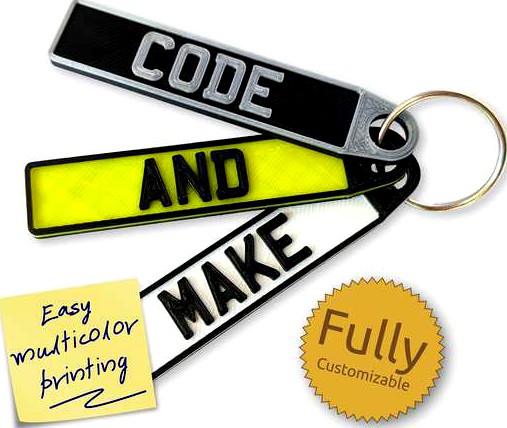

A customizable keyring in the style of a EU/UK/GB number plate.
These are perfect for labelling your keys, bag and other personal belongings.
Use your slicer's 'pause at height' or 'filament change' feature to create multicolored keyrings on a single extruder 3D printer.
Font
To use this project, you will require the Mandatory font by K-Type, which is 'free for personal use'. Please see the K-Type Licences page for details.
Once you have obtained your copy of the Mandatory font, simply place the font file (MANDATOR.ttf) in the same directory as the .SCAD file included with this project.
If you see the following (or similar) errors in OpenSCAD, check the name and location of the font file:
WARNING: Can't open library 'MANDATOR.ttf'.
ERROR: Can't read font with path 'MANDATOR.ttf'
Execution aborted
OpenSCAD Customizer Options
This design has the following Customizer options:
Text
Text - The text
Inset_Text - Should text be inset?
Text_Thickness - Thickness of the text
Plate
Plate_Width - Width of the plate (excluding border)
Border_Width - Width of the border
Plate_Thickness - Thickness of the plate
Keyring
Keyring_Hole - Should a keyring hole be added?
Hole_Diameter - Diameter of the hole
Hole_Border_Width - Thickness of the material around the hole
Other
Priming_Block - Add a priming block (for multi-filament prints)
Priming_Block_Diameter_Percent - Diameter of the priming block
Priming_Block_X_Offset_Percent - Priming block X offset as percentage of distance from center
Priming_Block_Y_Offset_Percent - Priming block Y offset as percentage of distance from center
Multicolor keyrings with a single extruder 3D printer
If you'd like to print with multiple filaments:
1) Make a note of the Text_Thickness and Plate_Thicknesssettings you've used.
2) Consider adding a Priming_Block. The idea is that, at the start of each layer, your printer should print this first. This will help to ensure the filament is flowing nicely after a filament change, before starting to print with the new filament.
3) You can adjust the size and position of the Priming Block to suit your needs. Don't make it too large though, as you'll be wasting filament.
4) Print using your slicer's 'pause at height'/'filament change' feature, ensuring to switch the filament somewhere between the desired heights. In Cura this can be found under: Extensions > Post Processing > Modify G-Code > Add a script
Versions
1.0 (25 Feb 2021) - Initial version
Printing
Recommended slicer settings:
Resolution: 0.1mm - 0.2mm
Infill: ~20%
Supports: No
Rafts: Should not be required unless you experience adhesion issues.
Attribution
The example keyrings shown in this project use the Mandatory font and are shared with permission from K-Type.
License
The "Personalised Number Plate Keyring" code (.scad) is licensed under The MIT License by Code and Make.
Note: 'BSD' license has been selected as it is the closest available option in the list.
To use this project, you will require the Mandatory font by K-Type, which is 'free for personal use'. Please see the K-Type Licences page for details.
We are proud to offer content to you absolutely free.
We love to create free content for you. As you might imagine, it takes a lot of time. Supporters help us fund materials and equipment to create future projects and tutorials. To show your appreciation, please use the link below:
https://codeandmake.com/support
We thank you so much for your support!
