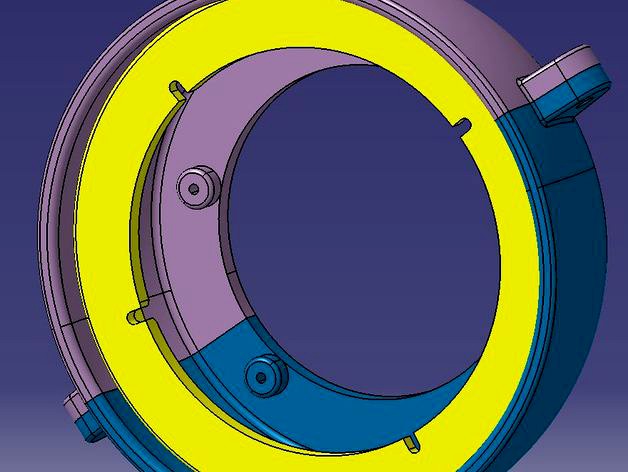

PENTAX K LEICA M MOUNT TILT LENS ADAPTER by CrapolaDesign
by Thingiverse
Last crawled date: 4 years, 7 months ago
Tilt lens mount adapter allows fitment of Pentax K mount lens to Leica M mount. Requires attachment of Pentax K mount lens to inner part and then attachment of Leica M mount lens flange to the assembled outer parts.
Fitment instructions:
Remove lens flange fixing screws from Pentax K mount lens.
Add inner adapter component and refit fixing screws leaving the lens flange in place - you may need to replace fixing screws with longer ones.
Fit the two outer adapter components over the inner component and fix together using appropriate length M3 screws.
Attach Leica M mount lens flange using appropriate length M1.6 screws.
