PBondTitan (Printable Bondtech Titan) by XodrateP
by Thingiverse
Last crawled date: 4 years ago
The project is suspended.
Trianglelab has cloned the original with 3: 1 reduction in a very economical way.
Link.http://s.click.aliexpress.com/e/cY1pJHUM

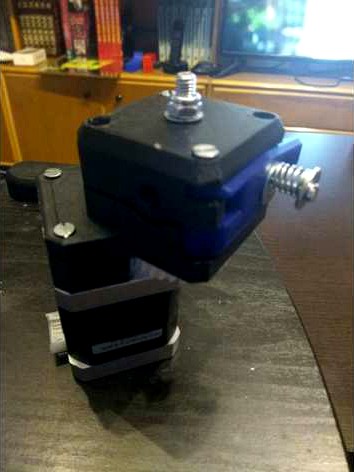

This extruder is a remix of the Pitan's one and teh STLs are downloaded from Bondtech's web.
The system get a 3:1 transmission from the motor , giving more pushing power, ideal for Bowden systems.
Marlin is calibrated at 512 steps and works pretty well. It;s a good measure to start callibrating.
Although I printed the prototype in PLA, the ideal would be doing it in ABS
The needed material for this project is as follows:
1Kit Btech dual gears.http://s.click.aliexpress.com/e/bZGuCv0N?
4 screw 3x30mm
4 screw 3x25mm
5 Insert nut 3mm. insert nut
1 screw Hexagonal 5x55mm
2 washer de 5mm
2 washer de 4mm
1 anti-retur nut 5mm
1 dock 4mm
1 Pneumatic Connectors 6mm
1 Ball bearing 625ZZ
Links used
Pitan: https://drive.google.com/open?id=0B7A1MEUY39HCN08zSGtUUmF0eE0
Bondtech Oficial website: https://drive.google.com/open?id=0B7A1MEUY39HCN08zSGtUUmF0eE0
El proyecto esta suspendido.
Trianglelab a clonado el original con reduccion 3:1 de manera muy economica.
Enlace.http://s.click.aliexpress.com/e/cY1pJHUM
Este extrusor es un remix del pitan, y los stl descargados de la web de bondtech.
El sistema consigue una trasmisión de 3:1 desde el motor, lo que da mucha mayor fuerza de empuje, ideal para sistemas bowden.
En marlín lo he calibrado a 512 pasos y funciona bastante bien. Es buena medida para empezar a calibrar.
Aunque he impreso el prototipo en pla, creo que lo ideal sería hacerlo en abs.
El Material necesario para este proyecto es:
1Kit Btech doble engranajes http://s.click.aliexpress.com/e/bZGuCv0N
4 Tornillos 3x30mm
4 Tornillos 3x25mm
5 Tuercas De inserción 3mm. 1Tornillo Hexagonal 5x55mm
2 Arandelas de 5mm
2 Arandelas de 4mm
1 Tuerca Atirretorno 5mm
1 Muelle 4mm
1 Conector Neumatico 6mm
1 Rodamiento 625ZZ
1Kit Btech doble engranajes
Enlaces a los Stl utilizados.
Pitan: https://drive.google.com/open?id=0B7A1MEUY39HCN08zSGtUUmF0eE0
Bondtech Oficial website: https://drive.google.com/open?id=0B7A1MEUY39HCN08zSGtUUmF0eE0
Trianglelab has cloned the original with 3: 1 reduction in a very economical way.
Link.http://s.click.aliexpress.com/e/cY1pJHUM
This extruder is a remix of the Pitan's one and teh STLs are downloaded from Bondtech's web.
The system get a 3:1 transmission from the motor , giving more pushing power, ideal for Bowden systems.
Marlin is calibrated at 512 steps and works pretty well. It;s a good measure to start callibrating.
Although I printed the prototype in PLA, the ideal would be doing it in ABS
The needed material for this project is as follows:
1Kit Btech dual gears.http://s.click.aliexpress.com/e/bZGuCv0N?
4 screw 3x30mm
4 screw 3x25mm
5 Insert nut 3mm. insert nut
1 screw Hexagonal 5x55mm
2 washer de 5mm
2 washer de 4mm
1 anti-retur nut 5mm
1 dock 4mm
1 Pneumatic Connectors 6mm
1 Ball bearing 625ZZ
Links used
Pitan: https://drive.google.com/open?id=0B7A1MEUY39HCN08zSGtUUmF0eE0
Bondtech Oficial website: https://drive.google.com/open?id=0B7A1MEUY39HCN08zSGtUUmF0eE0
El proyecto esta suspendido.
Trianglelab a clonado el original con reduccion 3:1 de manera muy economica.
Enlace.http://s.click.aliexpress.com/e/cY1pJHUM
Este extrusor es un remix del pitan, y los stl descargados de la web de bondtech.
El sistema consigue una trasmisión de 3:1 desde el motor, lo que da mucha mayor fuerza de empuje, ideal para sistemas bowden.
En marlín lo he calibrado a 512 pasos y funciona bastante bien. Es buena medida para empezar a calibrar.
Aunque he impreso el prototipo en pla, creo que lo ideal sería hacerlo en abs.
El Material necesario para este proyecto es:
1Kit Btech doble engranajes http://s.click.aliexpress.com/e/bZGuCv0N
4 Tornillos 3x30mm
4 Tornillos 3x25mm
5 Tuercas De inserción 3mm. 1Tornillo Hexagonal 5x55mm
2 Arandelas de 5mm
2 Arandelas de 4mm
1 Tuerca Atirretorno 5mm
1 Muelle 4mm
1 Conector Neumatico 6mm
1 Rodamiento 625ZZ
1Kit Btech doble engranajes
Enlaces a los Stl utilizados.
Pitan: https://drive.google.com/open?id=0B7A1MEUY39HCN08zSGtUUmF0eE0
Bondtech Oficial website: https://drive.google.com/open?id=0B7A1MEUY39HCN08zSGtUUmF0eE0
