Partition Material 4 Drawer

Partition Material 4 Drawer

by Thingiverse
Last crawled date: 5 years, 7 months ago

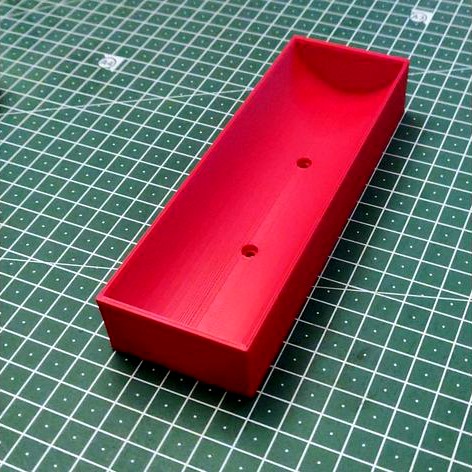

I have always been annoyed by the prices of professional drawer organization systems such as Lst or the lousy quality and lack of usability in cheaper systems. But annoying is one thing - doing is the decisive thing! So I started with a few simple troughs for cylindrical tools like drills or so. The inserts do not adhere to any standards except that they are 25mm high and a multiple of 50mm. You can use almost any combination in your drawers.
The inserts can be screwed to the drawer base or wherever you use them with M3 socket head screws.
I will publish more inserts in a few days, these are 150x150mm and 100x100mm wide.
The next generation should then still have the opportunity to make a subdivision in the field itself.
My hint is to print these in ABS, if you use them in a Metalworkingshop like I do. I would also recommend printing in signal colors so that you can better see the tools stored in it.
Please excuse the distorted photo. Thingiverse probably has a few problems right now.
I have completely revised the profile of the inserts on 30. Dec. so that less material is used and the inserts can be cleaned better if necessary. The inserts are compatible with each other, you can use the new profile or the old one, also mixed - no problem - as long as the same width is used. However, this is only a limitation for the new, "open" missions. These are intended for storing longer tools. My hint is to use supports for printing.
Updates:
26. Dec. 2019: Added 150mm + 100mm Square Insert.
30. Dec. 2019: Added 150x45mm
30. Dec. 2019: Complete redesign to save time and Material! Use the *V2*.stl. First version is still aviable, if you have problems with bridging.
30. Dec. 2019: Added inserts with "open" ends, so you can use them for storing of longer tools too. Use the *Open*.stl
30. Dec. 2019: Added Inserts for storing of distance spacer rings for (horizontal) miling machine spindles: 13,16,22,27,32,40 & 60mm
05. Jan. 2020: Changed insert for spindle rings: 0.5mm smaller diameter for better fit.
Insert 50x145 (open) for the rear part of Kuepper drawers added.
Insert 150x145 (open) for the rear part of Kuepper drawers added.
