Parametric Thread by foxos
by Thingiverse
Last crawled date: 4 years, 8 months ago

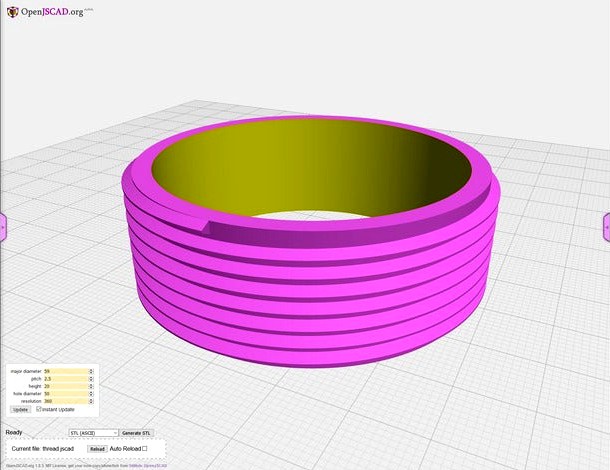

Customizable thread written in openjsscad.
Version: 1.1.0
Show / Customize / Instant Edit
Customize: Just edit the parameters(bottom left), click "update" then "Generate STL" and "Download STL". BOOM ready to print or to use it as library .
Examples
The Examples you can download directly at Thingiverse are for demonstration purposes only. For example 2 i set hole diameter to 0.
Update 1.1.0
Now it is possible to generate the exact counterpart of the thread.
Increase slightly the major diameter at counterpart to get a gap between the parts so the thread is movable.
Something wrong or missing?
Source Code @github.
File an issue.
Or even better create a pull request.
