Parametric paint shelves for Clarke CWR50 Metal Tool Board by sodnpoo
by Thingiverse
Last crawled date: 4 years, 4 months ago

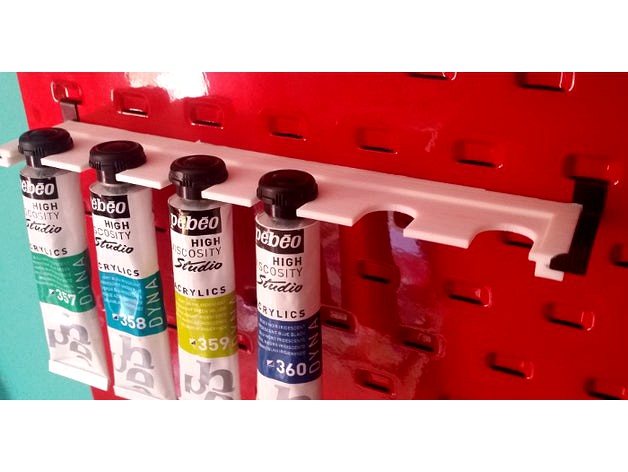

Simple 3D scad model for the Clarke CWR50 tool board - to hold small paint tubes. The shelves are angled back a little, so the tubes won't fall off. With some minor modifications I guess it would be useful for small tools etc as well.
The design is fully parametric, and you can specify the number of hook perforations wide you want the shelf to be (num), the size (paint_slot_width) and spacing (paint_slot_spacing) between the centres of the paint slots. The scad code will then squeeze in as many as possible.
See https://www.sodnpoo.com/posts.xml/parametric_paint_shelf_for_clarke_cwr50_metal_tool_board.xml for more information.
The design is fully parametric, and you can specify the number of hook perforations wide you want the shelf to be (num), the size (paint_slot_width) and spacing (paint_slot_spacing) between the centres of the paint slots. The scad code will then squeeze in as many as possible.
See https://www.sodnpoo.com/posts.xml/parametric_paint_shelf_for_clarke_cwr50_metal_tool_board.xml for more information.
