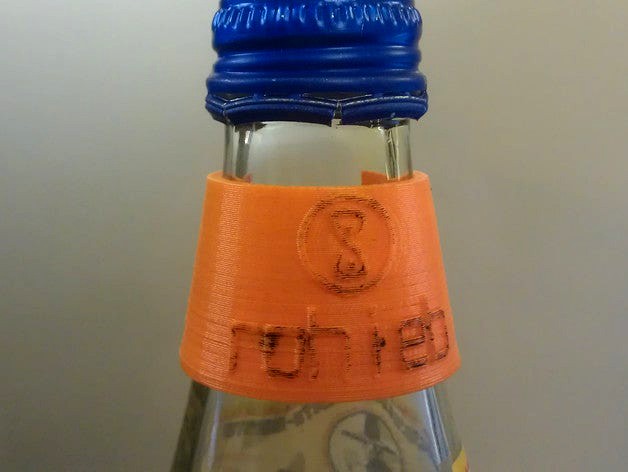

Parametric Bottle Name Tag by rohieb
by Thingiverse
Last crawled date: 4 years, 7 months ago
An OpenSCAD script to create clips with your name on it which can be used to mark your bottles. In contrast to the original version by daniel, this derivative is easier adaptable and knows the following parameters:
name
logo (DXF, should be 50mm*50mm)
radius at upper and lower side
height
font
gap angle
The name tag itself resides as a module in bottle-clip.scad, and there are some ready-to-use examples in examples.scad. Feel free to modify them.
Note that the STL provided here ist just for illustration. You can print it though, if you want ;-) There are also some logo samples which you can use.
Update 2018-07-29: add gap angle parameter, useful for flexible filament
Update 2013-03-26: add Club Mate logo. The script needs Write.scad and fonts in the write/ subfolder now.
Update 2013-06-06: added Tetris S piece and a glider. This thing is now maintained on GitHub: https://github.com/rohieb/bottle-clip-name-tag
