A modular parameterized camera mount for attaching a Raspbery Pi cam to an Ender-3's Y-bracket.
I wanted a mount that was simple and would allow me to easily remove the Pi camera for use in different projects.
1 20mm m2.5 cap-head screw and nut required to connect the holder to the mount.
Two pre-made lengths included, but the OpenSCAD file has a customizable range from 52mm-120mm. If generating your own STL files, consider using the "show test" option to get smaller pieces for test-fits.
I believe it requires OpenSCAD 2019.05 or newer (hence not flagged for Customizer)
2019-11-26 Update

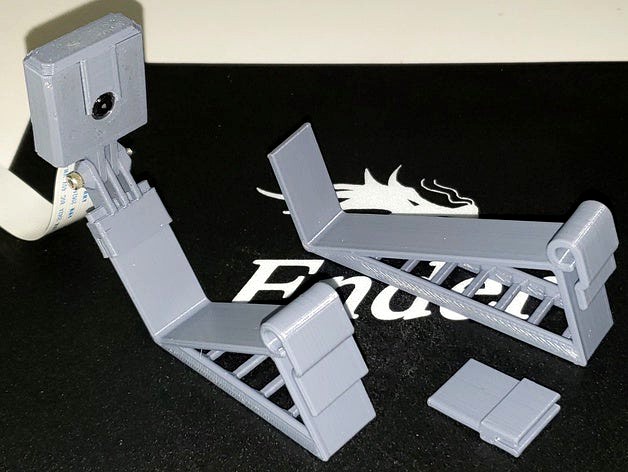

I realized I forgot to put on the newer camera mount with the current hinge before taking the picture.
And, yes, the other end of that cable is connected to my minimal pi case
