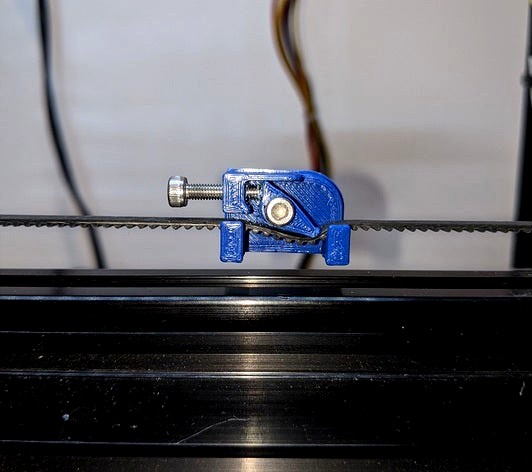

Parallel to belt tensioner by mab776
by Thingiverse
Last crawled date: 4 years, 8 months ago
I was wanting a small length low-profile adjustable belt tensioner to fit under my bed, so I remixed this one ( thingiverse.com/thing:1780636 ) where the screw is perpendicular to the belt and modified it to be able to reach the screw under the bed by putting the screw parallel to the belt. It is used on a TEVO Tarantula, but it can be placed on any 6mm wide belt.
The screws are M3.
Please note that it is best to make the tip of the screw smooth with a file to avoid the screw eating the rotor when using it.
Print with at least 3 perimeters and 5 bottom and top layers.
