An outside weather proof IP camera based on the PI Zero W and cheap Infra red camera with led illumination.
//--------------------------------------------------------------------------------------------------------------//
22/8/17

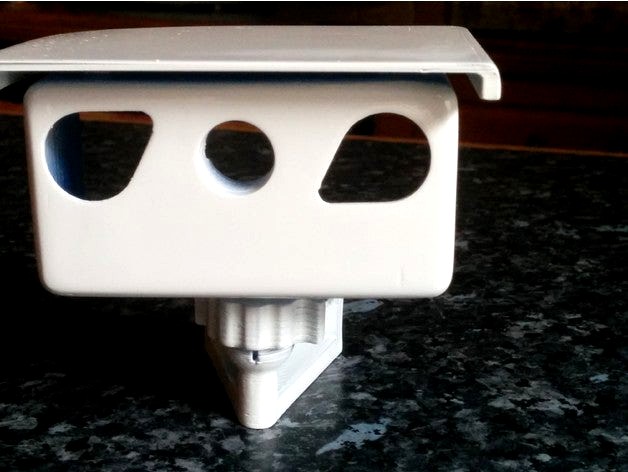

Front case added with wall mounting bracket and swivel mount.
Print in ABS
Use the windows as templates to cut around some thin clear plastic sheet. Silicone into the front case from behind.
silicone around the camera lens and place into case making sure the lens is focused and pi zero cable is attached.
If printed in ABS the ball can be attached to the front case using acetone.
The shield can be attached again using acetone.
Pi Zero can be held in place with hot glue gun or some other method.
The front case has been designed to take a 4 pole M12 connector, these are available from a large number of suppliers and are usually IP65 rated and above. As the PI Zero W has wifi only +/- 5vdc power is required to pass through the plug and socket.
//--------------------------------------------------------------------------------------------------------------//
16/9/17
Rev 2 case and ball joint added. The ball joint allows another 11 deg tilt to be added to the swivel joint.
Rev 2 case has the side slot removed and simple hole for M12 cable gland.
//--------------------------------------------------------------------------------------------------------------//
For software I you the supper motioneyeos distribution created by Calin Crisan which proves to by easy to setup and very stable.
https://github.com/ccrisan/motioneyeos/wiki/Installationhttps://www.facebook.com/pg/motioneyeos
//--------------------------------------------------------------------------------------------------------------//https://youtu.be/bRjoqS-7oRUhttps://youtu.be/bk5GIO7d5E4
The swivel joint is a remix of mistertech's Ball and Socket Locking swivel components.http://www.thingiverse.com/thing:1785190
//--------------------------------------------------------------------------------------------------------------//
