*OUTDATED* Torch mount for Draeger and similar helmets by Cpt_Unstable
by Thingiverse
Last crawled date: 4 years, 7 months ago
This Thing is outdated, for the revised version please refer to Thing #4140811 !

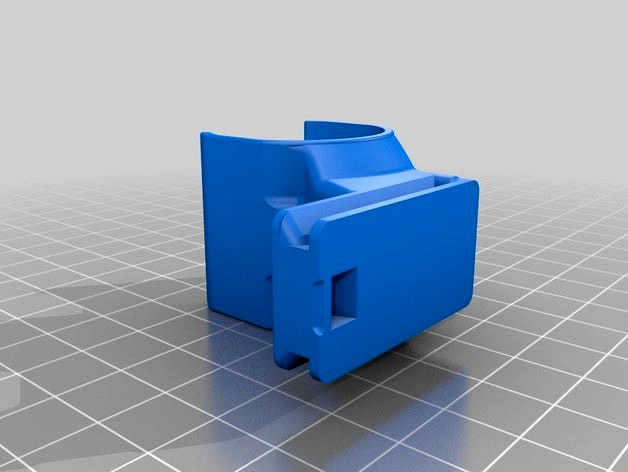

A variety of helmet mounts for the LED Lenser 7 Series.
Fits the Draeger HPS 4100 and the HPS 4300 universal mount (and probably most other universal mounts, as far as i know).
The Draeger HPS 4300/4100 is handed out to german firefighters and members of the german federal agency for technical relief, as well as to other civil defense agencies.
UPDATE 18.12.2018:
Added three newer versions (Draeger_T7-Series_Adapter), which are easier to print.
Bridges have been removed from these versions.
Also, a retainer for possibly mounted hand loops has been added.
The SMO version has this retainer on the outside, the SMI version on the inside.
Printing instructions:
Best results with 20% carbon filament @0.1mm resolution with a 0.4mm nozzle, needs about 6m filament for the larger mount
The universal mount is best printed with the mounting plate facing downwards without raft
The Draeger mounts print nicely sidewards, so the walls of the torch holder are vertical.
No rafts needed, supports only for the round portion.
The draeger version can be used upside down, keeping the torch safer and from hanging into branches and such ;)
DISCLAIMER:
Be aware that this is no official accessory to your helmet and might cause legal issues in case of an accident!
The LED Lenser torches are in no respect rated for explosive environments, this is what the orginal UK 4AA should be used for.
A version suited for the new, upcoming Ex-rated torch from LEDLenser is planned for summer 2019, it will be included here.
Use this at your own risk!
