Ortur Laser Master 2 Fixed Focal Laser Air Assist Mount by Teps71

Last crawled date: 4 years, 7 months ago

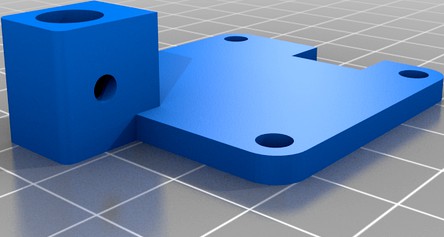

Air Assist Mount Plate. This replaces the clear acrylic plate on top of the laser head. Use a 5mm ID 7mm OD aluminum tube to mount nozzle and barb fitting and bend to direct nozzle. Tap both end M6x1. M3 screw to tighten on tube once positioned. 3D printer nozzles used at end of tube which can be drilled for desired air flow. Air Assist moves with height adjustment for fixed focal length laser to always point at the cut. Tube clears X+ side when head is moved to the extreme.
Aluminum Tube:https://www.amazon.com/gp/product/B07W4TW4ND
Hose Barb to M6 Thread:https://www.amazon.com/gp/product/B07Z9RB9JF
Nozzle with M6 Thread (Drill to desired opening):https://www.amazon.com/gp/product/B075487F63
