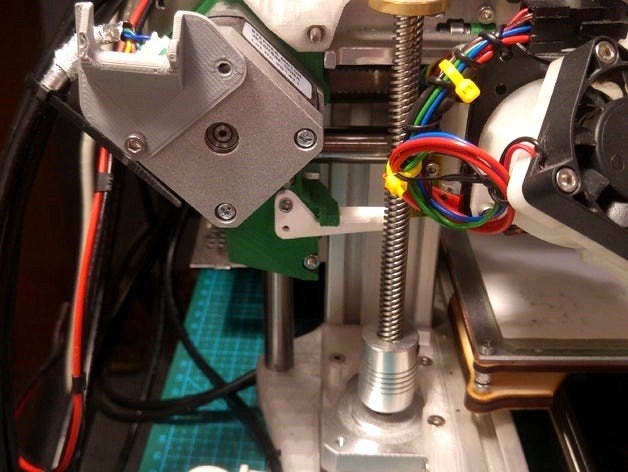

Ormerod z axis upgrade by improprietary
by Thingiverse
Last crawled date: 4 years, 11 months ago
In the pursuit of a better alternative to the M5 lead screw i saw that acme lead screws have come down in price due to higher demand. After figuring out how to implement this upgrade i came up with this design.
This upgrade requires three printed parts and a structural modification of your printer which will force you to recalibrate your printer.
--PLEASE NOTE--
The screws holding the IR probe will come loose over repeated homing of the X axis IF YOU DO NOT LOWER THE X AXIS HOMING SPEED FROM F2000 TO F1000 OR LOWER, the probe does not recognize the end stop quickly enough to avoid a collision with the z axis screw.
Bill of Materials:
437
4 M4x10mm cap
4 M4 t-nut
469
3 M4x10mm cap
3 M3x12mm countersunk
425
2 M3 x 50 cap
2 M3 x n/a countersunk
X end stop
2 M2.5 x 6mm
