Orca V0.30 open Frame X carriage LM8UU by Chri
by Thingiverse
Last crawled date: 4 years, 1 month ago
outdated design !, i recommend to print the uni-X Carrier instead http://www.thingiverse.com/thing:25420

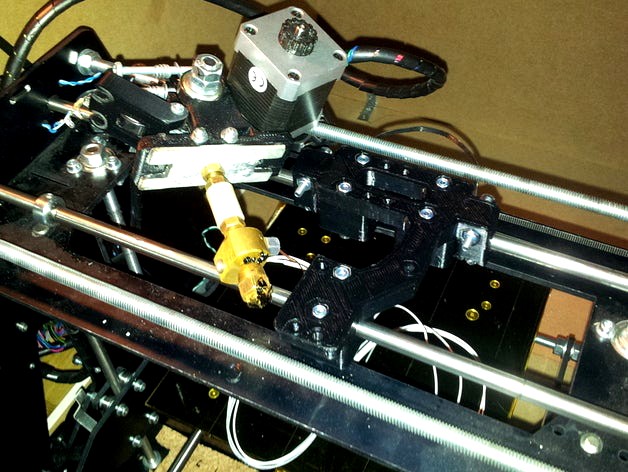

i was sick of the removing procedure every time so i made my x carriage open.
Changes are:
Open frame
Baseplate about 2,3mm smaller, now 30mm Screws fit better
moved the right outer hole 10mm forward
made some additional hexagon countersunk
