OrangeRX 433MHz cover
by Thingiverse
Last crawled date: 5 years, 10 months ago

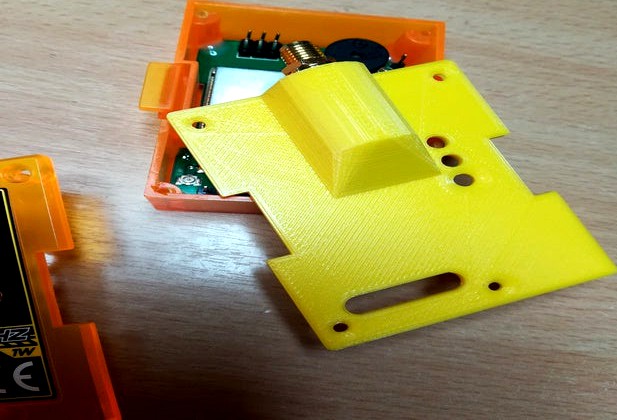

This is a cover for OrangeRX 433 MHz module installed in my Taranis QX7.
I've picked several designs around and mixed into this one. To sumarize, this one has:
Antenna realocated to the top of the module
Antenna slot has an indentation to avoid having the SMA moving around
Slot to access the serial interface
No need for supports
I decided to glue the PCB into the module itself with epoxy, so there is no need to have legs or extra holders to have the PCB in place.
