Orange PI PC slimline clip case by kyllikki
by Thingiverse
Last crawled date: 4 years, 8 months ago

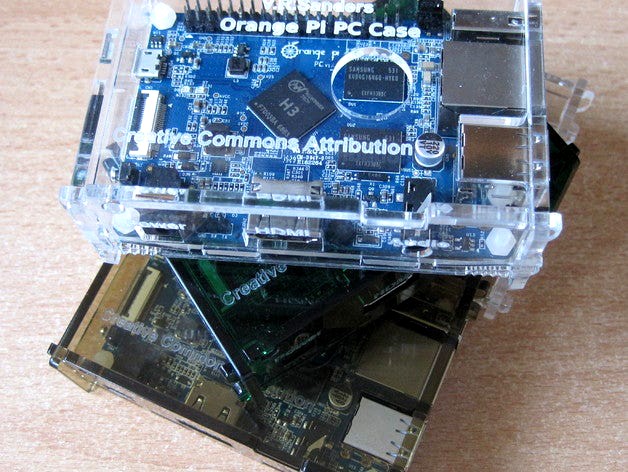

This case is designed to be laser cut from 3mm acrylic. The case is
for the Orange PI PC (not plus or opi2).
This design has a top that can be easily flipped open to get access
and is several mm shorter than previous designs. The top cover being
level with the top of the USB connectors.
The tolerances are very close but the design has been successfully
realised, though even the protective plastic covering upsets the slot
sizes enough to cause issues.
Using 1/8th inch acrylic does not work with this design!
I used 10mm long M3 nylon bolts to hold the board to the base with
a nylon nut underneath the board as a spacer.
Layer 0 (black) is the through sheet profile cut.
Layer 1 (red) is the connector and slot cutouts
Layer 2 (yellow) is the text
The lasercut files are what I used to create my prototypes and may or
may not be useful to you. They contain the toolpaths with my name and
the licence text in.
There is a a small issues with the design in that the µSD card slot is
very fiddly to access and you need fingernails to extract a card.
This is a working design and has been made by me but I offer no
guarantee that it will work for you.
I keep original design files in github https://github.com/kyllikki/designs/tree/master/OPi_PC_Slim
