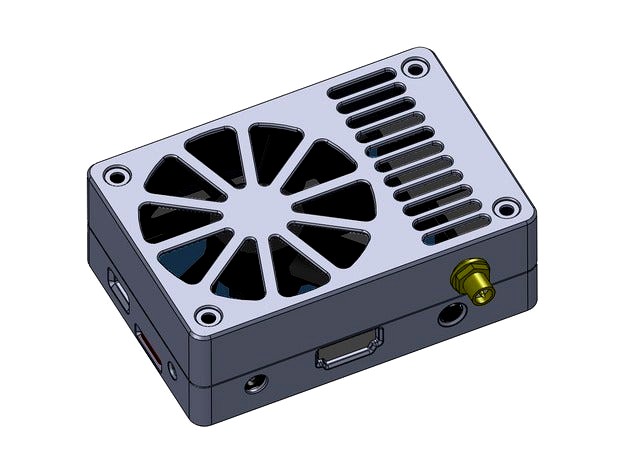

Orange Pi PC Plus 60 mm fan case by Pawpawpaw85
by Thingiverse
Last crawled date: 4 years, 8 months ago
This is a case for use with Orange Pi PC Plus.
It utilizes a 60x60x15 mm fan to keep things cool with low noise levels.
The GPIO pins are completely inaccessible and the connection for the fan needs to be soldered
directly to the input power pins.
This OPi case will be abandoned and a case with a radial fan will be developed, figured it'd be good to share this case as it might inspire others, and a lot of folks have shown interest in this case when sharing it previously.
One needs the following parts:
4 pcs M3x30 insex screws
4 pcs M3 nuts
Here are the electronic parts needed for this project:Orange Pi PC PlusOrange Pi Heatsinks60mm fanRP-SMA Antenna Adapter2.4Ghz Antenna
