This version has the WiFi antenna on the Back. See the Front version here:https://www.thingiverse.com/thing:2836896
See the Standard version of this case here (Standard Wifi antenna):https://www.thingiverse.com/thing:2778278

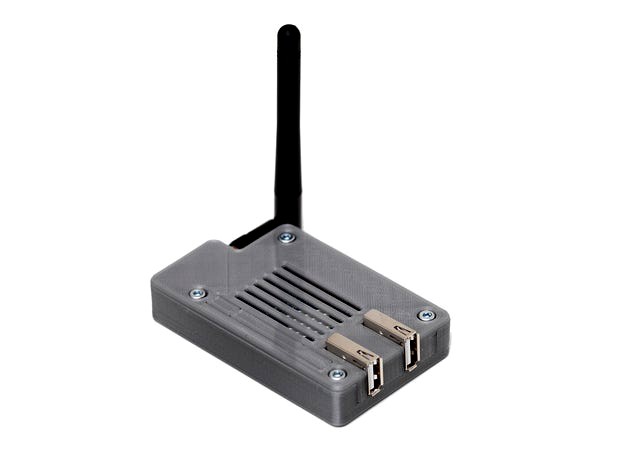

This is a compact and slim case for the Orange Pi Lite.
It has a swivel WiFi antenna that folds to the back whenever needed for storage and transportation.
It'll even fit inside the box that the OPi Lite came in!
It's a passively cooled case with access to GPIO pins by removing the plastic protection.
It's build for low/med performance, running constantly at 100% load may not be a good idea due to being passively cooled. Should not be worse than running the card naked though.
For use with OctoPrint, CPU temp average at ~40°-50°C.
[Mechanical parts needed]
4 pcs M3x12 insex screws
4 pcs M3 nuts
[Update 2018-03-22]
This case (v. 1-16) now support even larger Wifi Antennas! (Like 14dBi pictured in 5th picture) :D
[Electronic parts needed]Orange Pi LiteOrange Pi HeatsinksRP-SMA Antenna Adapter2.4Ghz Antenna
