OpenBuilds 6020 Rail X axis Belt driven with Adjustment by ant0ny
by Thingiverse
Last crawled date: 4 years, 4 months ago

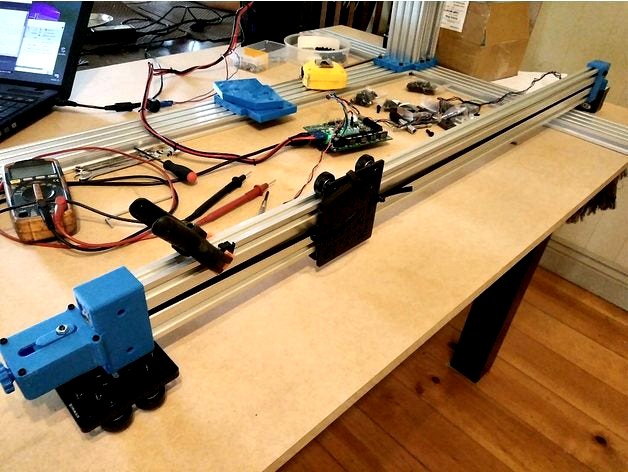

OpenBuilds 6020 Rail X axis Belt driven with Belt Adjustment.
Using Nema17 motor and GT2 Belt with 20 tooth idler and drive gears.
Just updated the parts with more clearance and added strength.
Added: X_carriage_Belt tensioner_10mm.stl is a stronger part and has options for tensioner bolt. You can either use 4mm Cap head with a lock nut or Hex head bolt
The is technically a remix from DoctorBaf but changed it significantly but his excellent ideas are there.
Using Nema17 motor and GT2 Belt with 20 tooth idler and drive gears.
Just updated the parts with more clearance and added strength.
Added: X_carriage_Belt tensioner_10mm.stl is a stronger part and has options for tensioner bolt. You can either use 4mm Cap head with a lock nut or Hex head bolt
The is technically a remix from DoctorBaf but changed it significantly but his excellent ideas are there.
