OnStep Case for Wemos ESP R32 with CNCV3 shield by chris_r_schmidt
by Thingiverse
Last crawled date: 4 years, 6 months ago

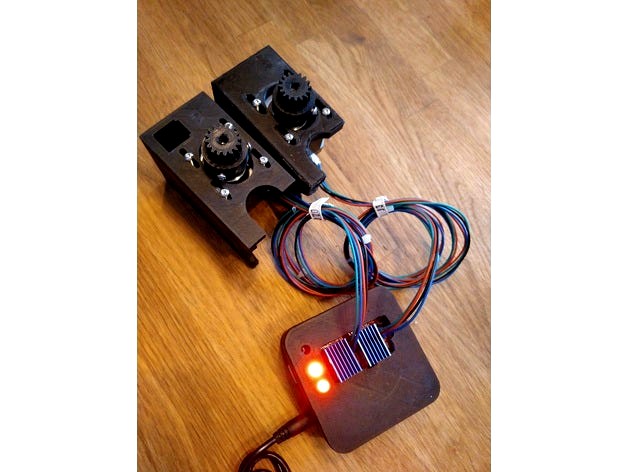

Case for Wemos ESP R32 with CNC V3 shield
12VDC used to power both ESP and shield through R32 connector
R32 DC connector location was slightly off vs. the Arduino UNO
I used large heat sinks, dimensions 20x14x13mm
OpenSCAD file included for customization
Space for two 5mm LEDs -
LED1 = power
LED2 = OnStep Guiding GPIO18
12VDC used to power both ESP and shield through R32 connector
R32 DC connector location was slightly off vs. the Arduino UNO
I used large heat sinks, dimensions 20x14x13mm
OpenSCAD file included for customization
Space for two 5mm LEDs -
LED1 = power
LED2 = OnStep Guiding GPIO18
