Oculus Rift - Generic LCD Sensor Mount by lsummers
by Thingiverse
Last crawled date: 4 years, 7 months ago
We've spent the last 3 years building our own VR content company (http://www.redironlabs.com). During this time, we've created many of our own parts for various things. I figured it was time to start sharing those here for everyone :)
This is a generic LCD mount for the Oculus Rift sensors. I've seen a few very LCD specific mounts, but none that really fit what I was looking for.
I wanted something with a bit thicker of support. Hard lines, flat, with a generic holder. Attached are two different types of LCD mounts.
Type #1 (sizes 1cm to 3cm)
Fits the sensors "loose" (no resistance).
You may need some electrical tape to grip the sensor and hold it in place
Uses more plastic, but longer arm for stability

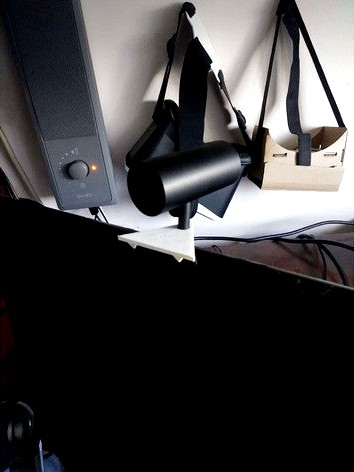

Type #2 [triangle] (sizes 1cm to 2.5cm)
I wanted something with a very specific triangle design and look
Due to the shape, going above 2.5cm was kind of unreliable
Sits lower and more flush (easier to knock over)
Tighter fit on the rift sensor
Note: If you aren't sure on the holder size, go for bigger rather than smaller - this will likely still grip and sit nicely
The size (in centimeters) is the size of the inner grip area for the edge of the LCD.
