Octoprint 3D Printer Status Monitor - Wemos D1 Mini & SSD1306 by Stevetecx
by Thingiverse
Last crawled date: 4 years, 1 month ago

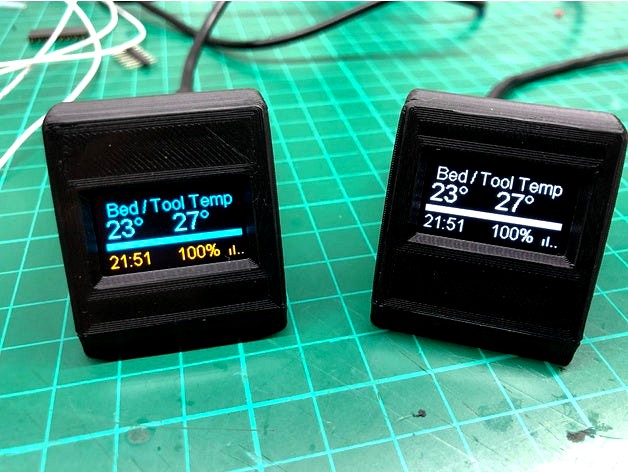

My Casing for this cool gadget.
Use a:
Wemos D1 mini
SSD1306 128 x 64 Pixel 0,96 Zoll
Cable
and a little bit hotglue to fix the parts together.
A cool guide to the setup this little gimmick:https://www.youtube.com/watch?v=Rm-l1FSuJpI&t=463s
Thanks Chris for the Video.
20181227: UPDATE!
New Design and a a new file for normal and a rotated display.
(settings.h - boolean INVERT_DISPLAY = true; // true = pins at top | false = pins at the bottom)
The New Files:
PinsUp
PinsDown
Housing
here is also a Update by Qrome:https://github.com/Qrome/printer-monitor
Important Versions:
Use for the Board
esp8266 2.4.0
and
Json 5.13.1
