UPDATE 18/04/17 Build photos added.
UPDATE 30/12/16 Name changed to Octo-Pi Delta,design as been tweaked v2.0 files uploading soon.
UPDATE added main body and base files.removed LCD back files for tweaking.

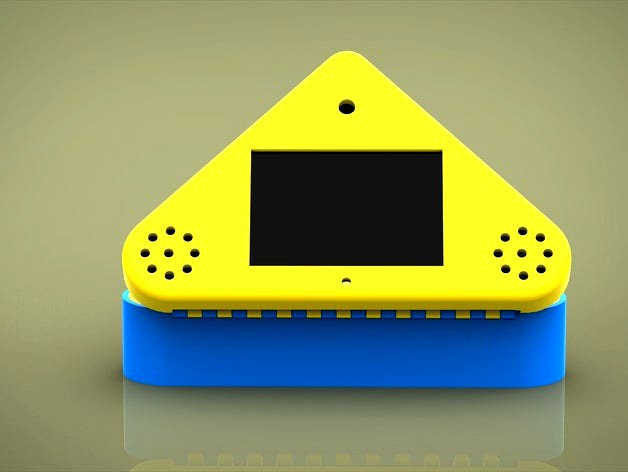

This is a raspberry pi enclosure for a camera,3.5 inch LCD,speakers,and microphone.
I am in the process of printing the files for assembly,
It as been designed so that all the cables exit behind the enclosure and are easily accessible.
For now i have uploaded the LCD front and back files,the other files are being tweaked before upload.
A rear facing camera design is in the works and will be uploaded shortly.
This is the short version LCD frame,you will need to solder the wires directly to the gpio header pins on the rear of the LCD.
I shall make a deeper version if it is requested.
The LCD frame and the LCD back are hinged using a 2mm length of wire inserted through the body,per my other designs.
Build photos and assembly list coming soon.
Enjoy
