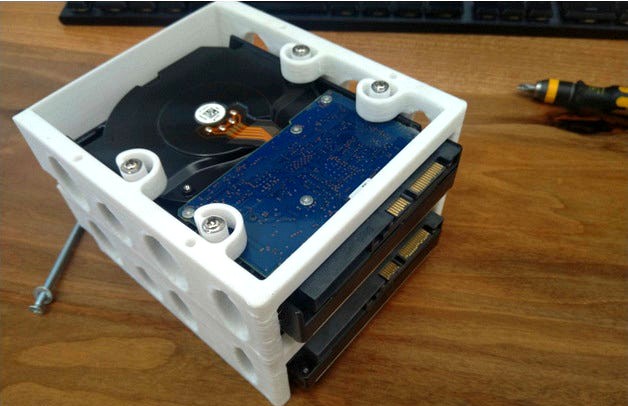

Anti vibration mount for the NZXT H510 case.
If you don't have these special screws that are shown in the pictures than print the files with the name _small_screw however I did not test those.
the ending _46 and _35 refer to the diameter of the mounting holes. if you want to install 2xHDD than print one of each, if you only want to install 1 print only the one with _35.
before mounting you should tap the 3,5mm hole to M4
DO NOT USE PLA, HDD get warm and will distort the springs. PC or PA is recomended.
A fan can be added by drilling two 3,5mm holes into the outer wall and using strandart plastic fan mounting screws
for 2xHDD you need:
4x M4x60-80 screws
8x HDD screws (some funny sized threats) ~13mm long or short normal ones
for 1xHDD you need:
4x M4x20-40 screws
4x HDD screws (some funny sized threats) ~13mm long or short normal ones
