NXP i.MX6 SCM module Case with WiFi. QWKS-SCM-IMX6DQ by igalloway
by Thingiverse
Last crawled date: 4 years, 7 months ago
[Includes STEP, IGES and AutoDESK Fusion360 CAD source files for easy editing]

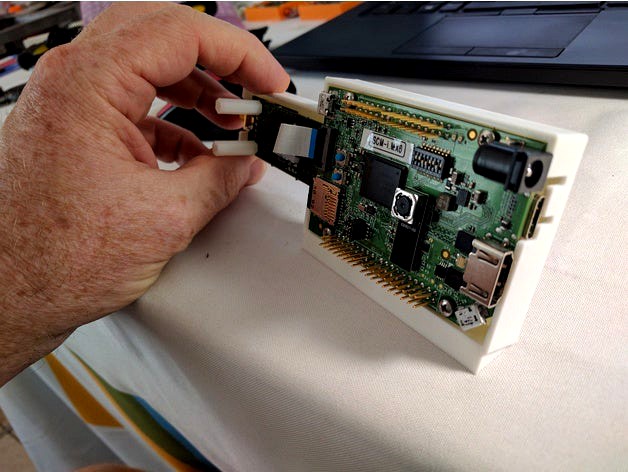

This is a custom case for the NXP i.MX6 SCM development board with a Camera and WiFi module attached. It has an angled bottom edge as i wanted it to tilt up for placement on a Drone demo i was preparing. It's nothing special, just wanted to give it a bit of protection and make it easier to velcro to the Drone.
The module itself can be found here:http://www.nxp.com/products/single-chip-modules/quick-start-board-for-scm-i.mx-6dq:QWKS-SCM-IMX6DQ
This was done in Autocad Fusion 360 - which i can barely use :-)
I've included the original A360 source file as well as STEP and IGES output.
