NodeMCU 1.0 ESP-12E/-12F case (ESP8266, Wemos D1) by agarthand
by Thingiverse
Last crawled date: 4 years, 7 months ago
Designed this case for my NodeMCU 1.0 ESP-12F ESP8266 board.
Ordered a bunch of those from AliExpress (e.g. https://www.aliexpress.com/item/1005001621705950.html) and needed a case to fit them.

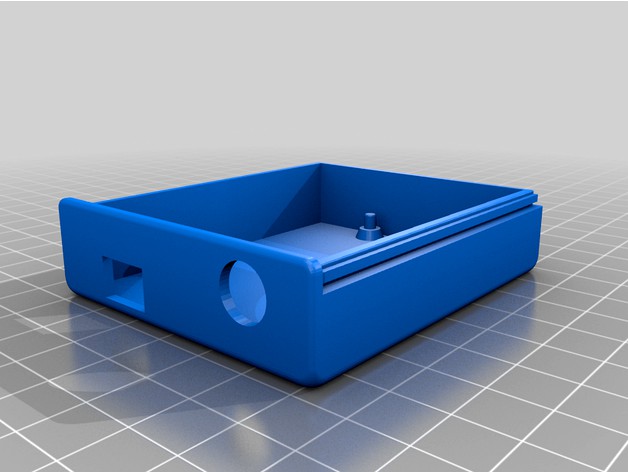

Case provides access at the front side to micro USB connector and power plug as well as to the IO pins and reset button from the top. Case consist out of the case itself and it's lid, which slides on. PCB is kept in place with 4 pillars, placed to fit into the original board holder positions.
