Nintendo Gamecube HDMI plate by crispycritter911
by Thingiverse
Last crawled date: 4 years, 11 months ago
This is my 3rd time making a part from scratch. Its designed to snap into the Digital AV Port on the back of the Gamecube. You MUST desolder the Digital AV port and install a KNJN Pluto-IIx board. You can purchase at this link http://www.knjn.com/ShopBoards_RS232_Parallel.html
To make it easy you should select the one that has GCVideo preflashed. GCVideo has wiring instructions found https://github.com/ikorb/gcvideo/blob/master/HDL/gcvideo_dvi/README.md

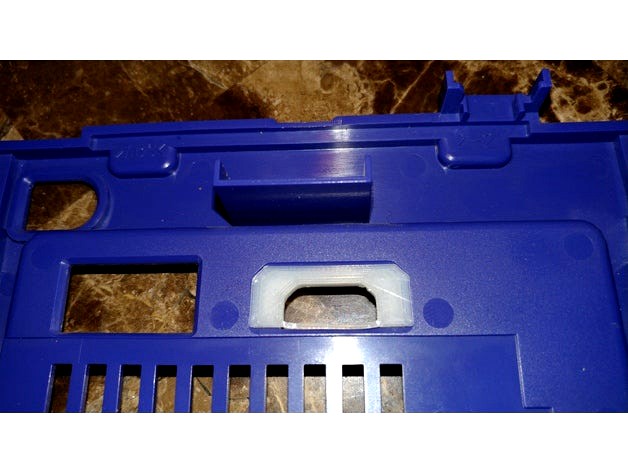

The HDMI port is centered in the plug but my port isn't 100% lined up with it. It is because I have secured the Pluto board to a screw hold just to the left of the analog video port. I also took a little dab of solder and used it to tack weld the HDMI connector to the shielding of the case. The bottom part of the print has a small section that can honestly be cut off and it will not cause any problems. I might make another version with the HDMI slightly off centered for those who decide to attach the Pluto board mentioned before.
To make it easy you should select the one that has GCVideo preflashed. GCVideo has wiring instructions found https://github.com/ikorb/gcvideo/blob/master/HDL/gcvideo_dvi/README.md
The HDMI port is centered in the plug but my port isn't 100% lined up with it. It is because I have secured the Pluto board to a screw hold just to the left of the analog video port. I also took a little dab of solder and used it to tack weld the HDMI connector to the shielding of the case. The bottom part of the print has a small section that can honestly be cut off and it will not cause any problems. I might make another version with the HDMI slightly off centered for those who decide to attach the Pluto board mentioned before.
