Nextion 3.5-inch LCD, Raspberry Pi Zero & MicroUSB Socket by m1geo
by Thingiverse
Last crawled date: 4 years, 7 months ago

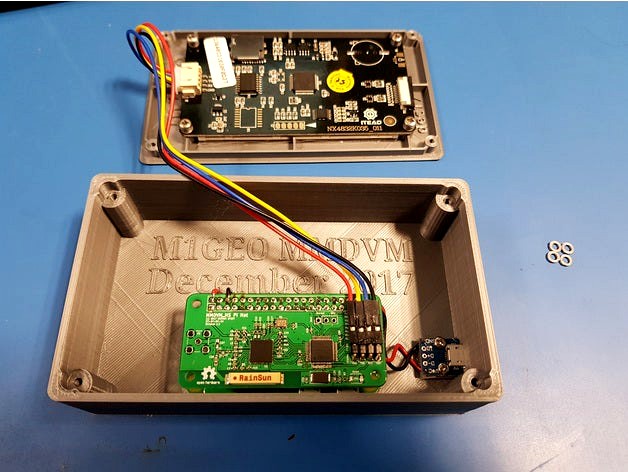

This case was remixed from the original to include mounting pads for a Raspberry Pi Zero W and also for a MicroUSB socket (see pictures), as well the Nextion 3.5" LCD. It was designed to fit an MMDVM ham radio board on top of the Pi which then connects to the LCD. However, you can connect the LCD directly to the GPIO pins on your Pi if if you imagine another use. The microUSB socket is recessed slightly to allow larger connectors to properly connect.
I went for a power socket on the right side, since it was to install in my vehicle. You can simply rotate the box to have the socket on the left, since the lid is not polarised. I have included some 1mm washers to pad between the screws and LCD.
I used M3 screws to hold the modules in, but self-tapping screws are fine. The holes are 2.5mm ID.
Feel free to hack it about to suit your needs. Text removed in uploaded version. Thanks to ledfreak3d for the original case.
George M1GEO
I do not have the time to print these cases for anyone; I'm sorry
