Network Ethernet Relay Box (Raspberry Pi Zero) by Z__Y
by Thingiverse
Last crawled date: 4 years, 11 months ago
Need a network/ethernet relay switch but don't want to buy one from Amazon that requires some random app that you need to download or register for? You can use a cheap Raspberry Pi Zero as the controller instead, allowing you to load your own programs and control it how you want within your network.

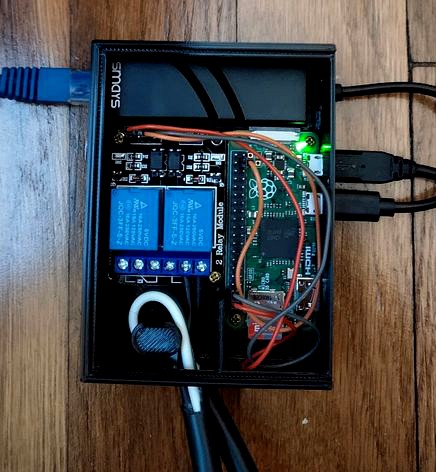

This box will hold it all together, including a Raspberry Pi Zero, relay, and usb-ethernet module.
Other Parts needed:
Raspberry Pi Zero with components needed to function (SD card, power supply, etc)
Relay Board: https://www.amazon.com/gp/product/B01D4VFS6M
USB Ethernet Adaptor: https://www.amazon.com/gp/product/B01AT4C3KQ
Power Cord: https://www.amazon.com/gp/product/B00C0R3UZI
5x M2 Thermoplastic inserts: https://www.aliexpress.com/item/32958273559.html?spm=a2g0s.9042311.0.0.27424c4dTkppsk
5x 6mm M2 Screws: (can find on ebay or hardware store)
Some wires to connect relay to Pi
