NEMA17 cable chain by aoreskovic
by Thingiverse
Last crawled date: 5 years, 1 month ago

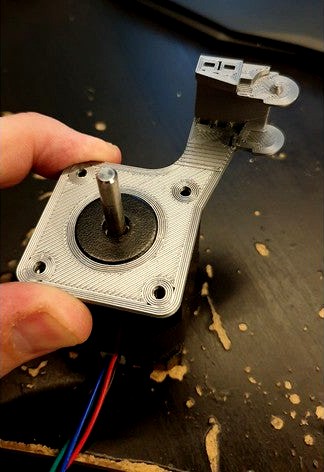

When I was moving to all metal extruder from the original plastic one, I had nowhere to mount my cable chain, so I designed this part.
Keep in mind, that the Creality extruder is held by 4 screws, and all 4 are too short when this is used- so you need to replace all 4 :(
You need:
1 x M3x20 cup head
2 x M3x10 button head
1 x M3x10 countersunk head
Keep in mind, that the Creality extruder is held by 4 screws, and all 4 are too short when this is used- so you need to replace all 4 :(
You need:
1 x M3x20 cup head
2 x M3x10 button head
1 x M3x10 countersunk head
