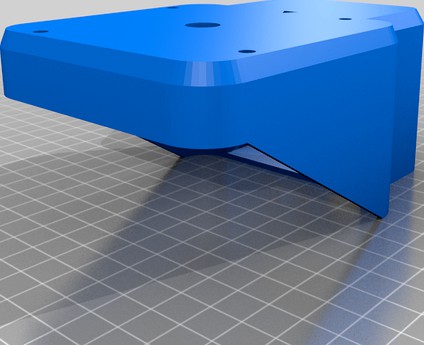

Nema 34 cover with connector

Last crawled date: 5 years, 7 months ago

For my motion control rig I made covers for the new Nema34 motors. These are single shaft motors and needed a dial to show they are moving. The spindle is pushed onto the shaft with a piece of anti-slip tape and is running in a ceramic bearing, with a dial glued on the top.
to mach the exact screw holes I used a picture and imported that in Sketchup, scaled it and used that as template.
