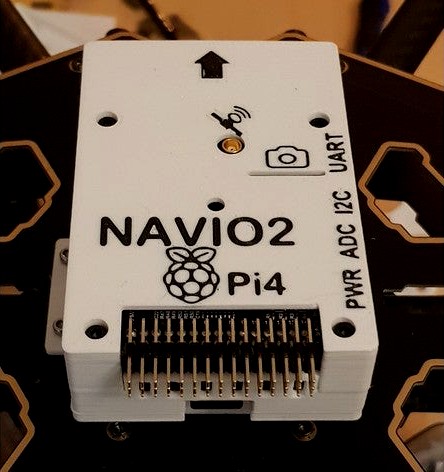

Navio2 Autopilot with Raspberry Pi4 - Case and Mount
by Thingiverse
Last crawled date: 5 years, 10 months ago
This is an updated version for the Navio2 with the Raspberry Pi 4.
I've included two versions of the bottom case:
pi-bottom-with-vibro.stl integrates the anti-vibration fittings (that match with the original anti-vibe model). However it needs a lot of support to print - came out well once, failed a fair few more.
pi-bottom-flat.stl prints easily, and fits with pi-bottom-flat-vibro-plate.stl, which all bolts together like a sandwich.
I updated the original anti-vibe mount to fit the Tarot 680 Pro - It attaches to the two static arms screw mounts (you'll need slightly longer screws - m2.5x30 work well)
I've included the pi-top-text.stl for those with MMU capability.
