A slightly heavier, cleaner version here:https://www.thingiverse.com/thing:4035039
Can also move the gopro case from quad to quad.

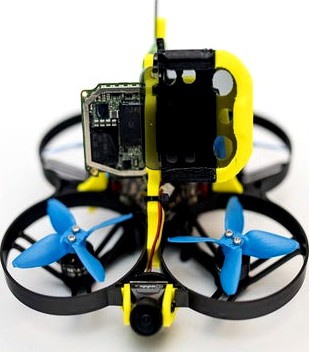

These are files to be used on the 85x frame to mount a naked hero 6.
The shape of the pieces are made to be SUPER easy to print. Maybe a few supports needed for the zip tie holes. Maybe you can skip them.
Supports needed for sure for the ND filter holder.
Use m2 nylon screws to mount the lens onto the board. Then nylon nuts to hold them on the other side. 2 sets of these will hold the lens.
THEN on the front since the lower part isn't held by anything, I added a small lens spacer (circled in red) so the lens doesn't want to break the PCB. I used a couple small dabs of Welder glue here to keep it in place but also I can remove it later. CA will work but will likely be permanent.
I held the 2 main pieces on using small clear hair bands from a girl's hair store (my daughter shops there).
I use tiny 2mm zip ties to hold things together.
The red lines on the 2 main parts show where the zip ties are to hold things together.
These are what I use on the bottom to hold things together - but I found a bag of about 500 in a mall. 1500 is a bit much BUT these are also good for holding balance leads to your batteries so 1500 might be useful.https://www.amazon.com/EAONE-Pieces-Clear-Elastic-Rubber/dp/B075QZQXQS/ref=sr_1_8?keywords=hair+bands&qid=1575084881&sr=8-8
Here are the tiny zip tieshttps://www.amazon.com/gp/product/B0094DE1WM/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
And the ND filters I am usinghttps://www.amazon.com/gp/product/B01KFJRM88/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
