Love the Multiplex EasyGlider for his easy flight characteristics. Ideal RC Airplane to fly Wing FPV. But with propeller at the nose, you always watch through the spinning propeller with anoying artefacts in your view.
So i decided (after some hard landings and deformed nose) to cut off the nose behind the motor, convert the easyglider to a 2-engine-FPV-Trainer:
Nose replacement with internal Cam-Holder
Cam: 22,5mm x 22.5mm case and 17.5mm diameter lense
Like the Razor Mini: https://www.aliexpress.com/item/32820081956.html?spm=a2g0o.productlist.0.0.26d441c1TuOM5y&algo_pvid=389d16a7-b540-4a61-b764-aa2750978f3d&algo_exp_id=389d16a7-b540-4a61-b764-aa2750978f3d-17

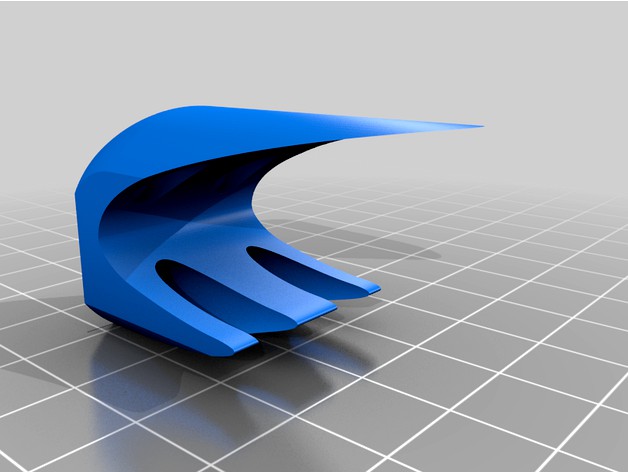

Wing Motor Mount for any FPV Multicopter Motor with 16mm ore 18mm diameter mounts.
like this one: https://sunnyskyusa.com/collections/r-motors/products/sunnysky-r2205-brushless-motors
There is a ESC cut out to tape the ESC directly under the mount with minimal motor-cable length
printed in PETG for better crash and temperature resistance (motor up to 80°C)
