MULTIMETER RESISTOR TEST by drjcpp

Last crawled date: 5 years, 3 months ago

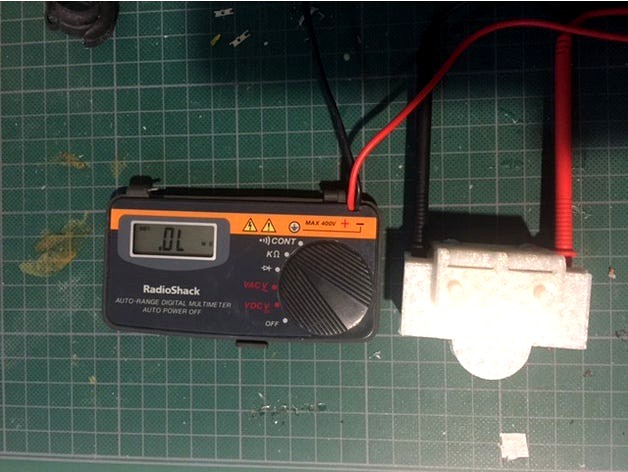

Put together this small jig to test a a box full of resistors without having to guess too much on variation of color shades (lazy). This jig let´s you place the resistor in with leads placed over metal sheets, close the top and read the value on a multimeter that can be plugged in the back.
The hinge is courtesy of winand http://www.thingiverse.com/thing:1209695/#files
