Multimaterial Y Joiner Bracket for ZoneStar Z5 by Nvision81

Last crawled date: 4 years, 7 months ago

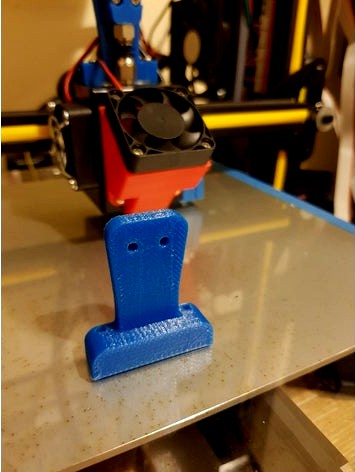

Desgined this bracket to hold Zemistr's Multi Material Y Joiner on the Zonestar Z5. Zemistr also has a bracket to hold the joiner to the hotend of a Prusa i3 MK3 but for the Z5 it needed to be slightly taller, so based of the bracket - I designed another that bolts to the 2 holes on top of the hotend housing.
Between the coupler of the Hotend and the Y-joiner, there is about 3mm Gap (between couplers)
Zemistr's Y Joiner Bracket https://www.thingiverse.com/thing:3058253
Zemistr's Multi-Material 'Y' Joiner https://www.thingiverse.com/thing:3039887
