Mudguard rear bridge for C-Lite Curana Mudguards

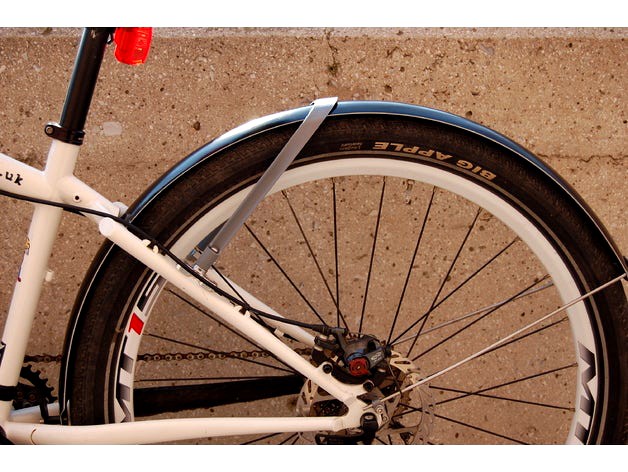

This is a mudguard bridge I designed to overcome two issues. First, there are no eyelets on the seat stays of the On-One Inbred to mount the given curana bracket. Second, the frame is small and seat stays are far from the virtual top of the mudguard and struts;so if you somehow (eg. zip-ties) mount the given bracket at the seat stays the mudguard will violently shake at every bump and hit the tire. With this bridge the support is almost at the top of the fender. This makes the mudguard very stable. It fits at the v-brake bosses.
This is a mudguard bridge I designed to overcome two issues. First, there are no eyelets on the seat stays of the On-One Inbred to mount the given curana bracket. Second, the frame is small and seat stays are far from the virtual top of the mudguard and struts;so if you somehow (eg. zip-ties) mount the given bracket at the seat stays the mudguard will violently shake at every bump and hit the tire. With this bridge the support is almost at the top of the fender. This makes the mudguard very stable. It fits at the v-brake bosses.
