Mr Fix-it 1 3/4" pass through + nut
"Honey, can You fix it?" <==> "Of course, honey"
.... no need to run to the store, use Your 3D printer.
I bought 1 cubic meter plastic barrel for my rain water collecting system. I will need pass-through to mount on the barrel and connection to existing system.

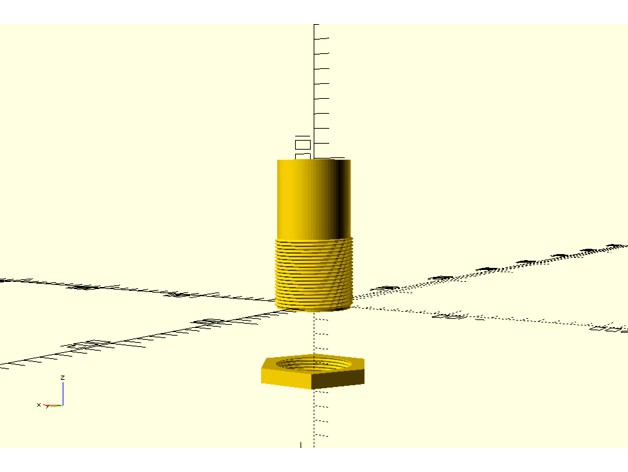

Here is 1 3/4" pass-through with pipe end dia 50 + nut to print twice.
If You want to print other sizes/length:
download Template Shapes_Text https://www.thingiverse.com/thing:4863092 and open in OpenScad
copy template code (included) and paste in show area. Then hide customizer plate,
enter template number (601) in Customizer Show and scroll down to the template.
Change parameters to get what You want.
edit 26-05-2021
added self adjusting reducer plate and thread in pipe (works like male threaded reducer).
download template 601 code ver2-threads
Next step will be set of threaded pipe fittings?
This design is effect of playing with Template Shapes_Text https://www.thingiverse.com/thing:4863092 and will be included in next database release
